Part Number: 5300 / Vendor ID Number: 3888 / UPC: 00054007083177 / Custom:
5300 MTR LEAD  P60

5300 MTR LEAD P60
by 3M Electrical Products

Call For Price
Qty
Product Specification
Dimensions
Height: 3.40"
Width: 6.00"
Product Overview

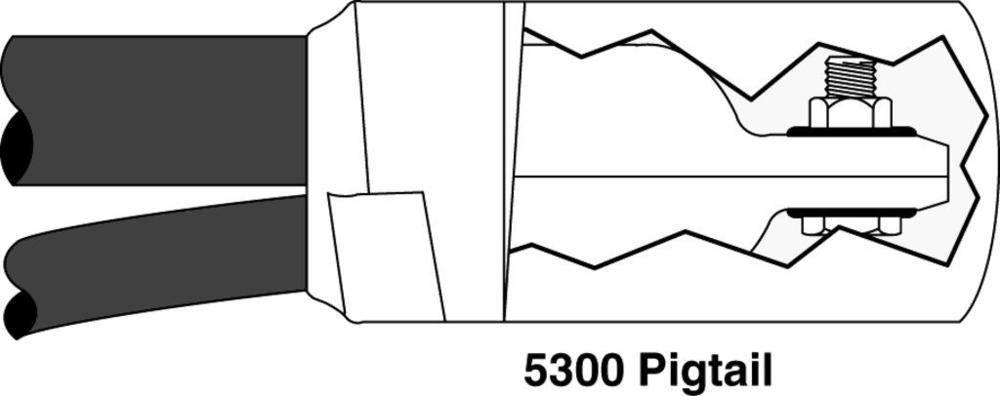

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal.These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used.Kit contents include:• (3) Pigtail lug covers• (3) Mastic sealing strips• (3) Locking pins (kits 5302–5304 only)• (3) Tubes of silicone grease• (1) Instruction sheet
Product Availability
    Call for Availability
Cable Size:
Info & Guides
Technical Details
Details
Electrical Category:
Fittings and Hardware
Electrical Subcategory:
Electrical Hardware And Supplies
Electrical Subtype:
Cable Splicing Kits
Brand Name:
3M
Cable Size:
14-10
Country Of Origin:
USA
Installation Link:
Lead Time:
2.000 DA
Length:
7.9000 IN
MsdsURL:
http://images.salsify.com/image/upload/s--NUcCogmT--/t15pdulyob7qityw3ssm.pdf
Number Of Cables:
3
Order Minimum:
1.000 KT
Order Multiple:
1.000 KT
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
Three splices
Stock Type:
Shelf Stock
Tech Drawing Link:
Type:
Pigtail
UNSPSC:
39121718
Voltage Rating:
0 - 1000 V
Weight:
0.500 L
Manufactured By:
3M Electrical Products
