Part Number: 65/860/4
/
Vendor ID Number: 81
/
Custom:

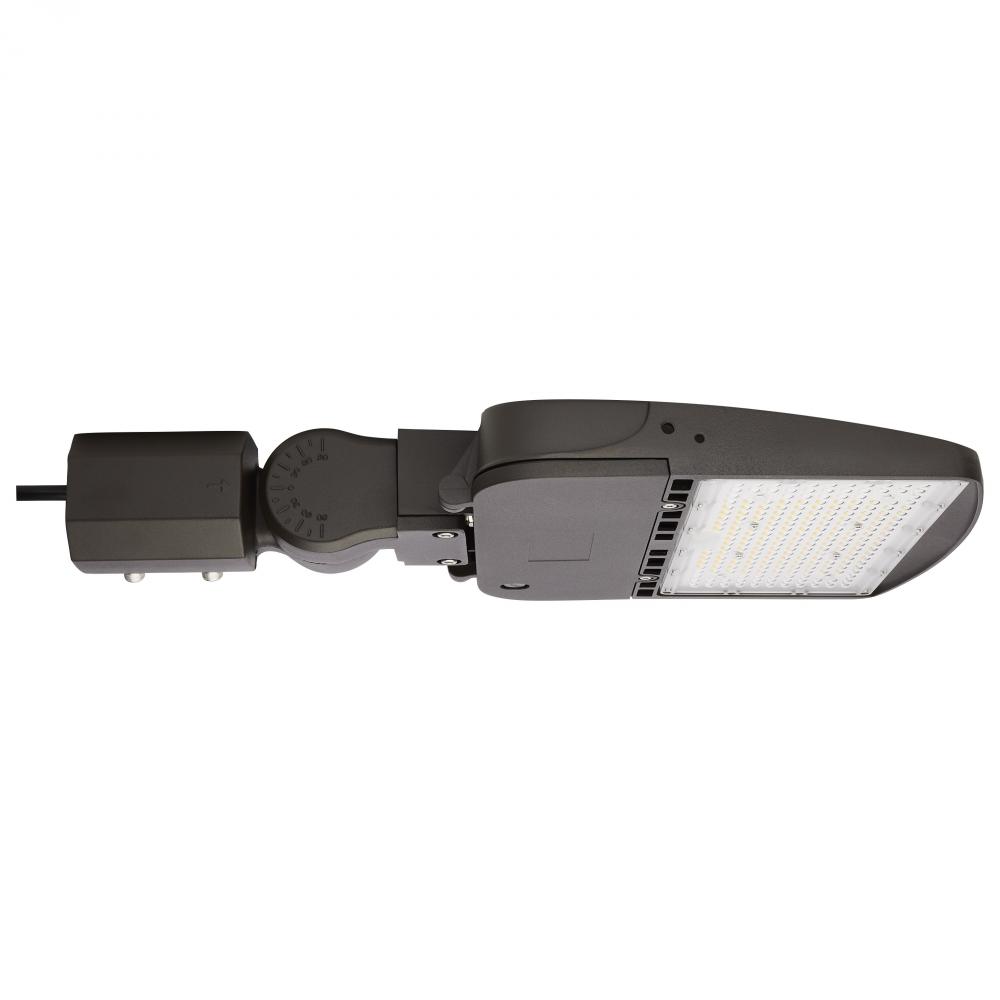

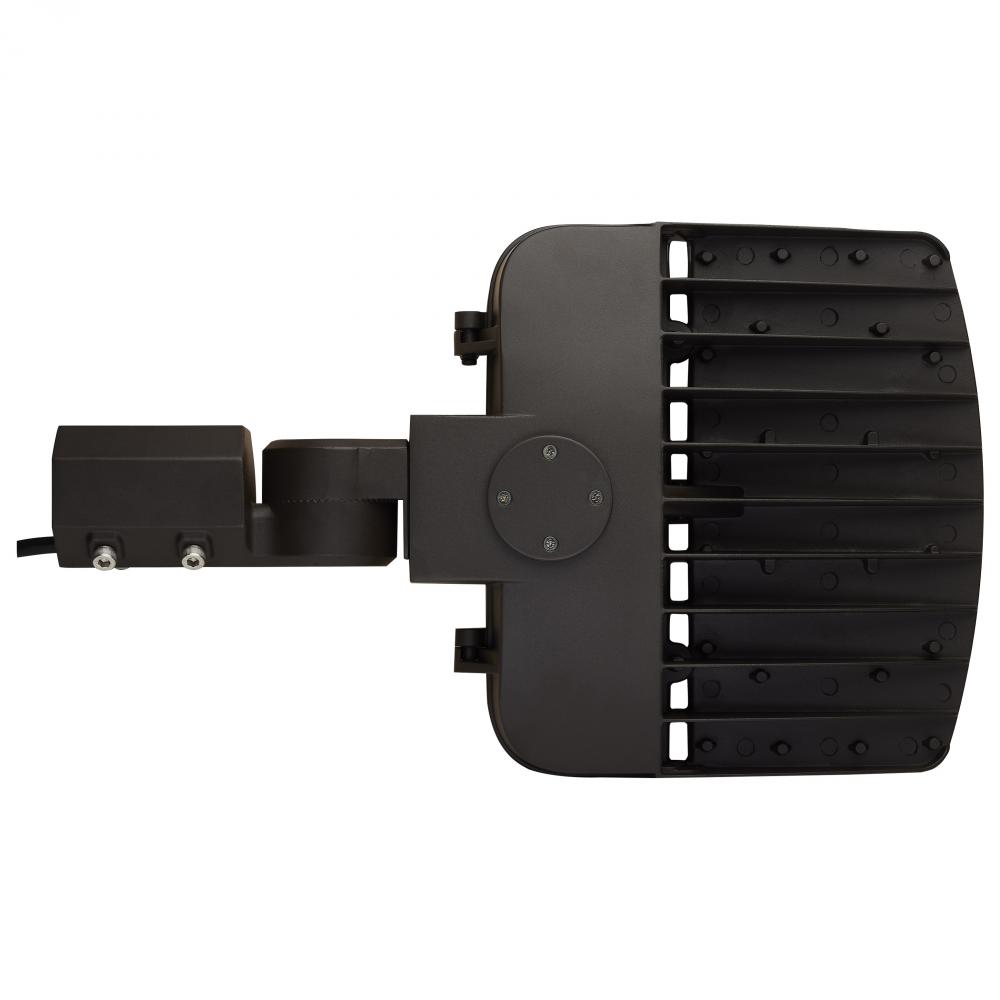

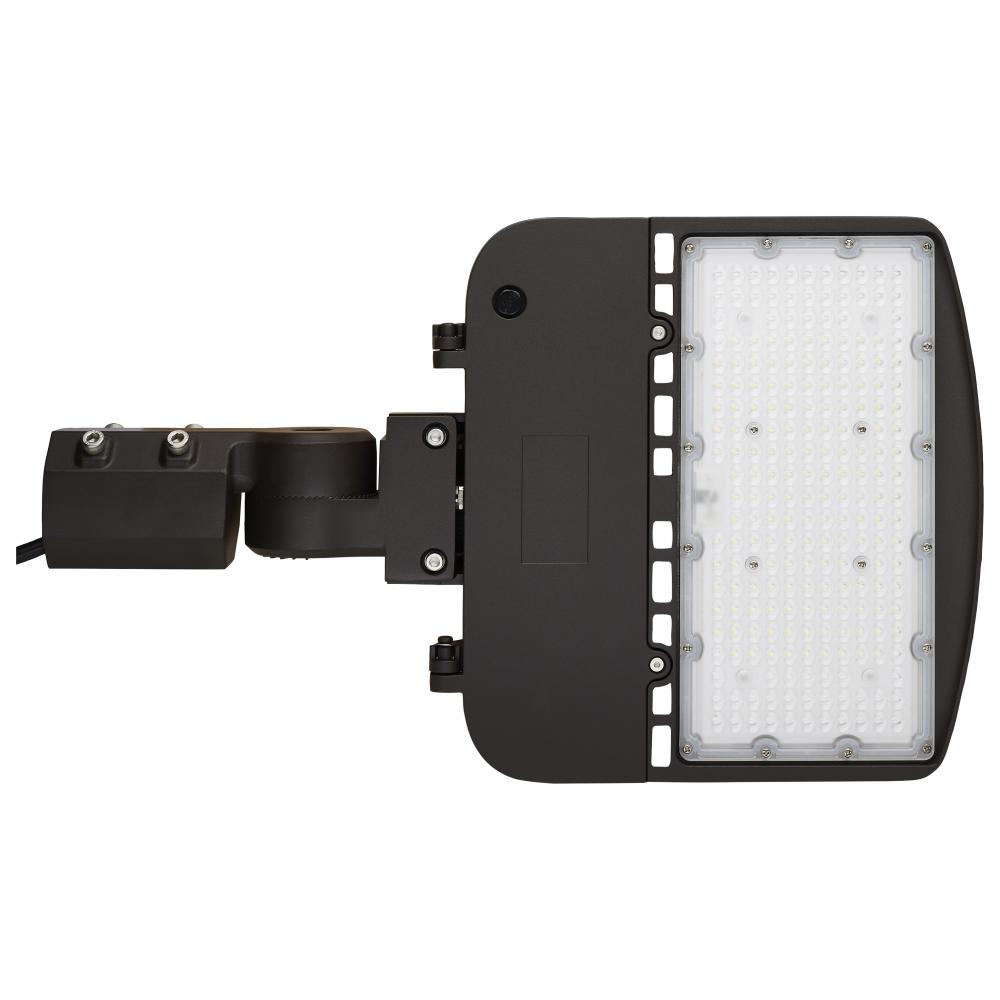

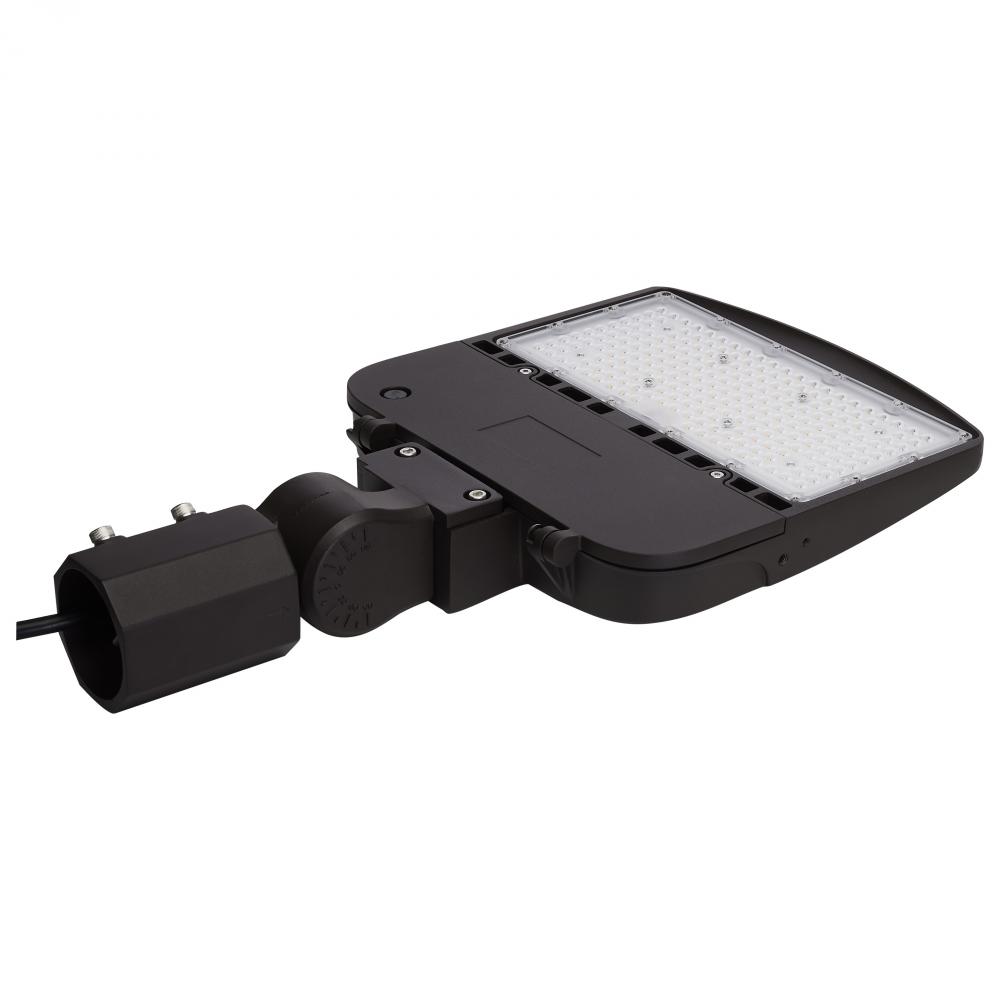

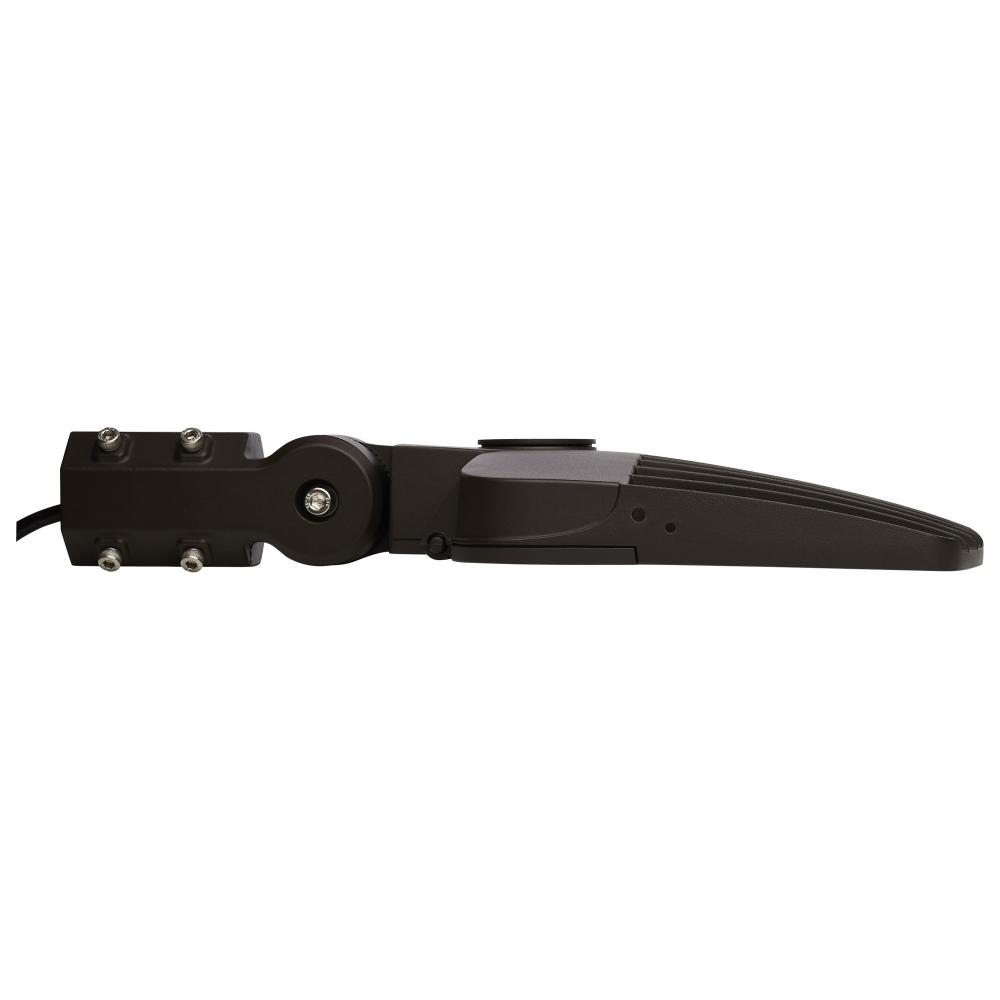

LED Area Light Type IV; 100W; Bronze Finish; 4000K; 277-480V
by Nuvo
Call For Price
70 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.11"
Width: 12.40"
Finish
Bronze
Product Overview
LED Area Light Type IV; 100W; Bronze Finish; 4000K; 277-480V
Product Availability
-
Manufacturer has 70 in stock / Warehouse has 0 in stock
Technical Details
Details
Category:
Utility
Subcategory:
Other Utility
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Outdoor
Sub Category:
Area Light
Style:
Utility
Additional Info:
Powder Coated
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Dimmable:
Yes-Dimmable
Each Height:
5.71
Each Length:
23.23
Each Width:
14.37
Length:
20.71
Lumens:
13793L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.361-0.208A
ANSI Base:
Integrated
BAA Compliant:
No
B_U_G_Rating:
B4-U3-G4
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80+
Dark Sky Rated:
No
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
Each Cube:
1.1031
Each Quantity:
1
Efficacy:
137.93 LPW
FCC Compliant:
Yes
Feature 1:
Maintenance free - no bulb to change
Feature 10:
5-Year Warranty
Feature 2:

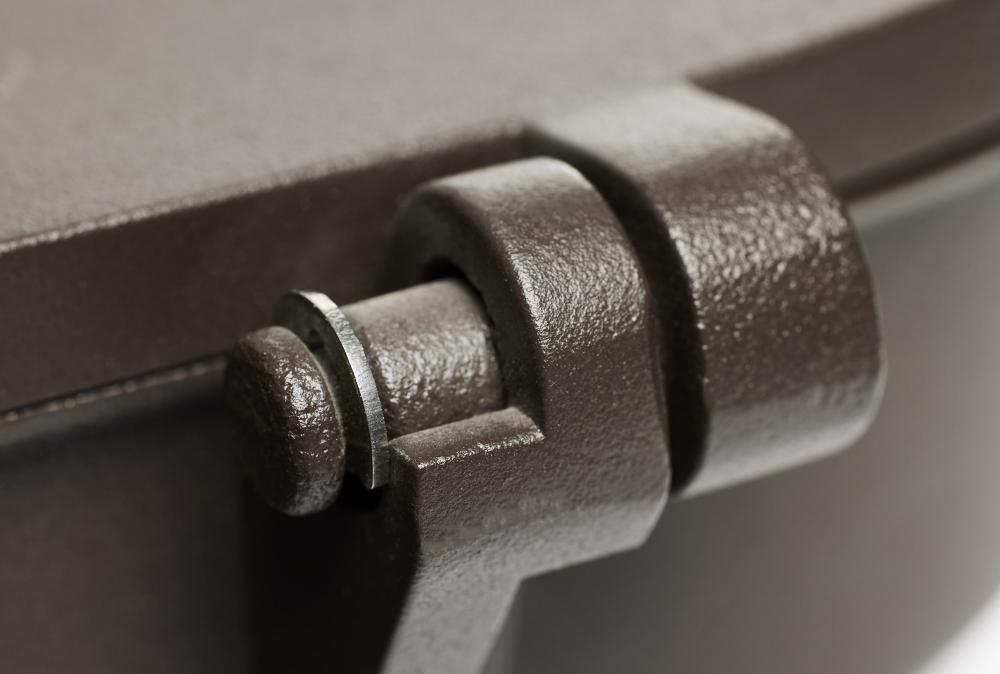

Die-cast Aluminum Body
Feature 3:
UV Stabilized powder coasted bronze finish
Feature 4:
Slip-fitter mount included
Feature 5:
IP65 Rated
Feature 6:
Multiple mounting options available
Feature 7:
Add-on sensors available
Feature 8:
TYPE IV Lighting Distribution
Feature 9:
4KV Built-In Surge Protection
Finish Family:
Bronze
HID Equiv:
250W
Impact Rating (IK):
IK10
Incandescent Equivalent:
500W
Includes:
Slip-fitter Mount
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No

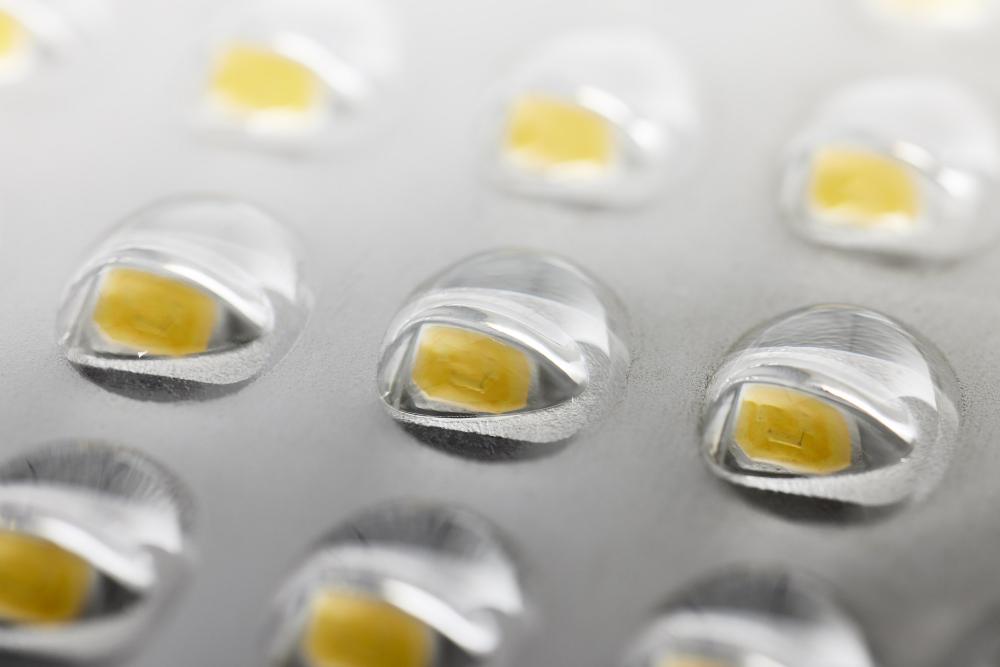

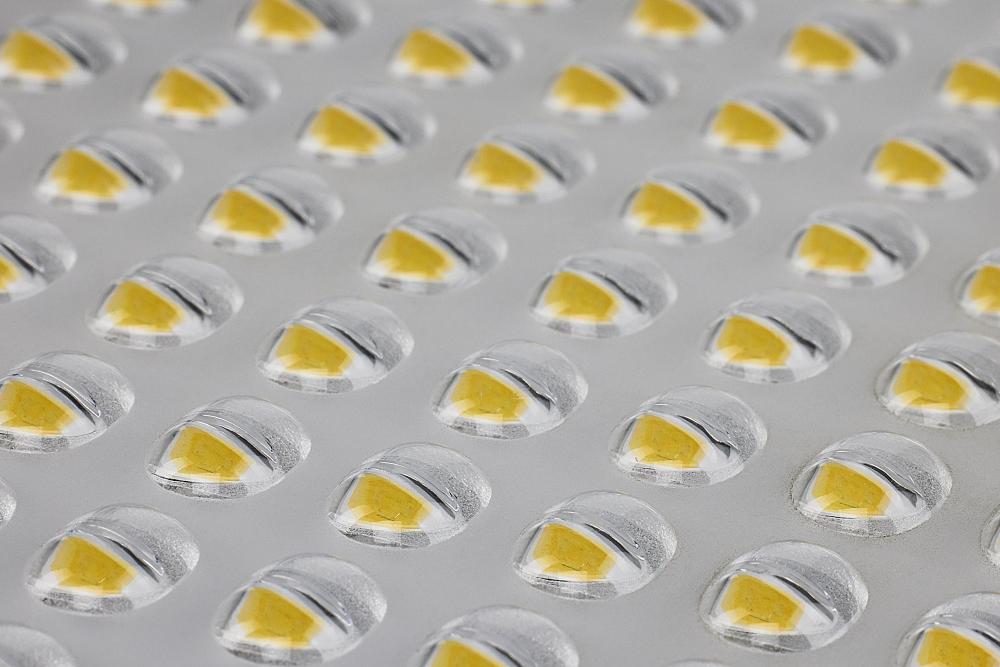

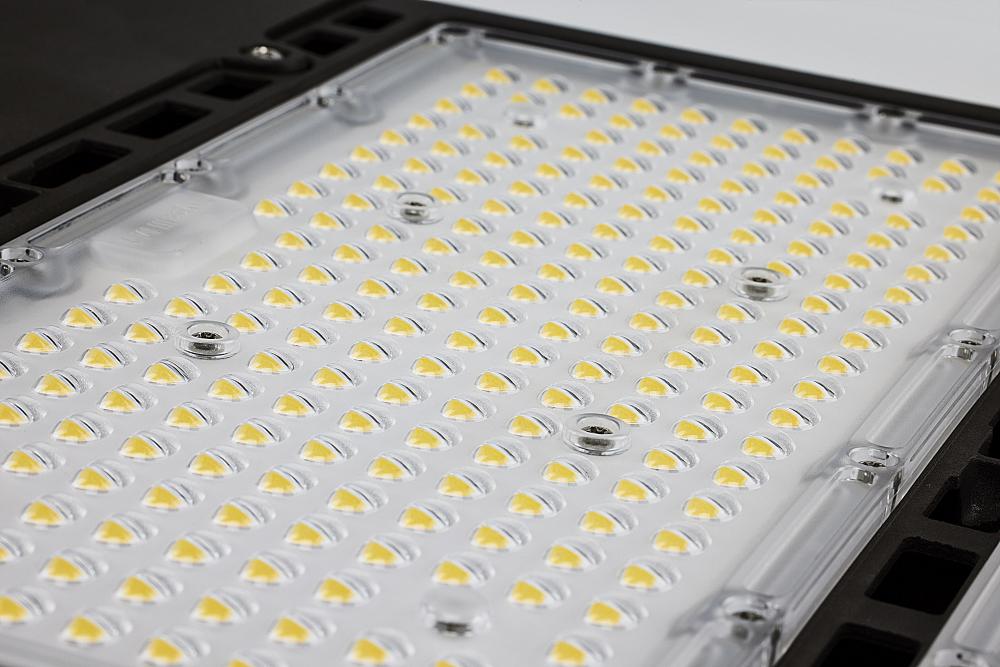

Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's 65-860-4 100W LED Area Light Type IV provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO NUVO's LED Area Lights, built using
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall/Pipe Arm
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
15
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Area Light Type IV provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO NUVO's LED Area Lights, built using die cast alumi
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
100W LED AREA LIGHT TYPE IV
Specification Notes:
Type IV Light Distribution
Temperature (CCT):
4000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
7.88
Manufactured By:
Nuvo
