Item Sales Info

Part Number: FP7500RS / Vendor ID Number: 90 / UPC: 00840506049802 / Custom:

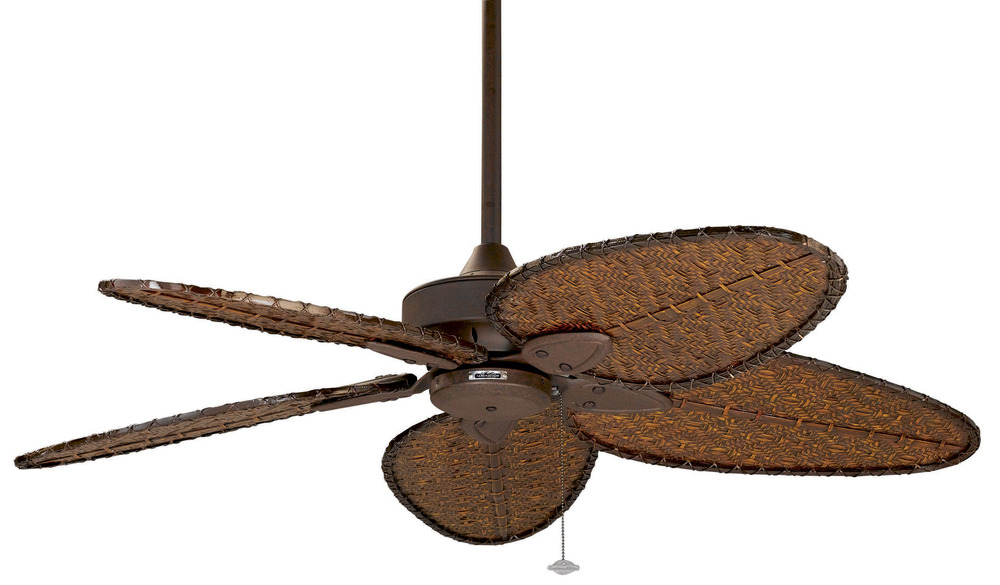

Windpointe - 52 inch-RS with A Narrow Oval Blades
by Fanimation

Call For Price

108 In Stock

Qty

Product Specification

Dimensions

Height: 14.50"

Width: 52.00"

Product Overview

Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Product Availability

Manufacturer has 108 in stock / Warehouse has 0 in stock

Additional Information

3 Speed Ac Motor With Reverse Switch

3177 Cfm On High

Light Kit Adaptable (sold Separately)

Pull Chain Operated

Set Of 5 Narrow Oval Blades With Multiple Finish Options Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)

Info & Guides

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

3177 Cubic Feet per Minute

Electricity Rate:

48 Watts (excluded lights)

Airflow Efficiency:

66 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Rust /vendors/vendorImages rust.jpg

Style:

Contemporary

Option:

Damp Rated

Voltage:

10-99

Number of Blades:

5 Blades

Location Rating:

Damp Rated

Category:

Fan-Uni

Finish:

Rust /vendors/vendorImages rust.jpg

Option:

Damp

Family:

Windpointe

Voltage:

120 V

Additional Info:

3 speed AC motor with reverse switch

3177 CFM on High

Compatible with Fanimation Bluetooth fanSync and most smart home devices (required controls sold sep

Light kit adaptable (sold separately)

Pull Chain Operated

Set of 5 Narrow Oval blades with multiple finish options included

Air Flow CFM:

3177

Air Flow Efficiency:

Amperage:

0.4

Blade Finish:

Narrow Oval Antique Bamboo

Blade Pitch:

Blade Span:

Canopy:

5.75 Dia x 2.57 H

Depth:

Diameter:

9.06

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Woven Bamboo

Motor Fan Speed:

Motor RPM:

114

Motor Size:

188 x 25

Motor Type:

Pull Chain Included:

Yes

Ship Carton Height:

11.93

Ship Carton Length:

24.13

Ship Carton Width:

13.15

Ship Weight:

32.65

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

24.9

Wire Included:

80"

Airflow Efficiency Low:

113

Airflow Efficiency Medium:

Avg Airflow Efficiency:

Avg CFM Energy:

2374

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Woven Bamboo

Blade Reversible:

Blade Sweep:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Carton Cubic Feet:

2.19

Cartons Per Unit:

Case Height:

11.93

Case Length:

24.13

Case Quantity:

Case Weight Pounds:

32.65

Case Width:

13.15

CEC Uploaded:

Yes

Ceiling To Blade Edge:

Ceiling To Bottom:

14.5

CFM Low:

1566

CFM Medium:

1867

Compatible Accessories:

CCK8002RS, DR1-12RS, DR1-18RS, DR1-24RS, DR1-36RS, DR1-48RS, DR1-60RS, DR1-72RS, DR1-CPRS, SCB1-52

Compatible Blades:

B5131DC, B5131RC, B5132DC, B5132RC, B5133CYWA, B5133MOMP, B5133TKMH, B5260WA, B5270WA, B5280WA, B5300WA, B5310WA, B5330WA, B5340WA, B5350WA, B6030CY, B6030MH, B6030MP, B6030TK, B6060WA, B6070WA, B6080WA, B6110WA, B6130WA, B6131DC, B6131RC

B6132DC, B6132RC, B6133TKMH, BPD1A, BPD4A, BPD4BL, BPD4MW, BPD5A, BPP1BR, BPP1TN, BPP4BR, BPP4GR, BPP4TN, BPW6030CY, BPW6030MH, BPW6030MP, BPW6030TK, BPW6090DNA, ISD1A, ISD1C, ISD2A, ISD4A, ISD4C, ISD7A, ISP1, ISP1RB, ISP2, ISP4, ISP4RB, ISP5

Compatible Controls:

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Light Kits:

F401RS, F404RS, F423RS, LK112A, LK113WH, LK114ARS, LK114WRS, LK122A, LK124ARS, LK124WRS, LK250, LK500RS, LKFL250, LKFL260, LKLP101RS, LKLP102RS, LKLP112ARS

Compatible Wall Controls:

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.4

Current Draw Low:

0.22

Current Draw Medium:

0.32

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

9.06

Included Control Type:

Pull Chain

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

114

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Manufactured By:

Fanimation
